ISO Test Charts
ISO 12233 Digital still-camera resolution chart to check focus/resolution for camera
Details

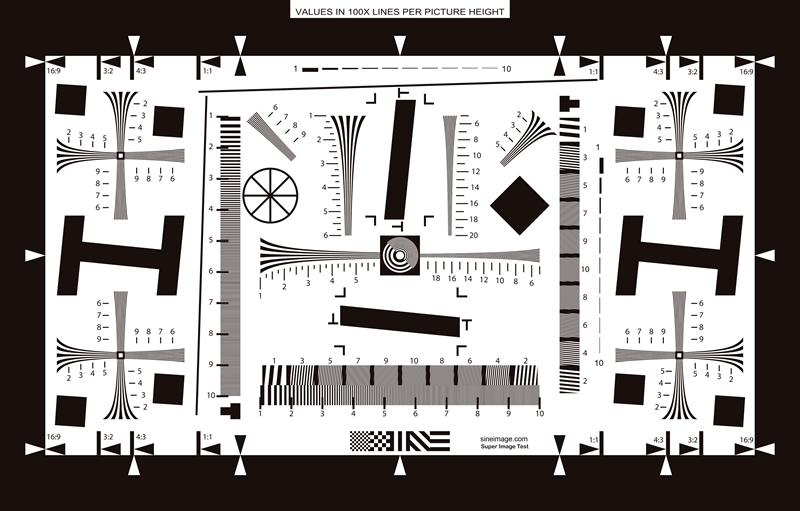

The ISO Camera Resolution Chart conforms to the ISO-12233:2000 standard, "Photography-Electronic still picture cameras - Resolution measurements". Hyperbolic wedges for resolution evaluation range from 100 - 2000 lines per picture height. Other features include checker patterns, multiple slant-edge lines, a center-focus zone plate and framing marks for 1:1, 4:3, 3:2, and 16:9 aspect ratios.
The ISO 12233 Resolution Chart is essential for assessing digital camera sharpness, supporting industry-standard resolution tests with durable, high-quality materials tailored for labs and studios.
Common standard specifications
| Product NO | Multiple | Size |
| NQ-10-50A | 0,5X | 10x17.8 cm |
| NQ-10-100A | 1X | 20x35.6 cm |
| NQ-10-200A | 2X | 40x71.1 cm |
| NQ-10-400A | 4X | 80x142.2 cm |
| NQ-10-800A | 8X | 160x284.4 cm |
Paper/ink type: Semi-gloss OR Matte. Matte paper/ink can be used to reduce reflected light, but is slightly less sharp than semi-gloss paper. Semi-gloss paper/ink is recommended for most applications.
Please Note
This chart does not conform to the updated ISO 12233:2014 standard. We recommend thePhotographic ISO 12233:2014 E-SFR chart for testing that does not specifically require the old chart.
