NR200 Precision Colorimeter Portable Color Measurement
Details

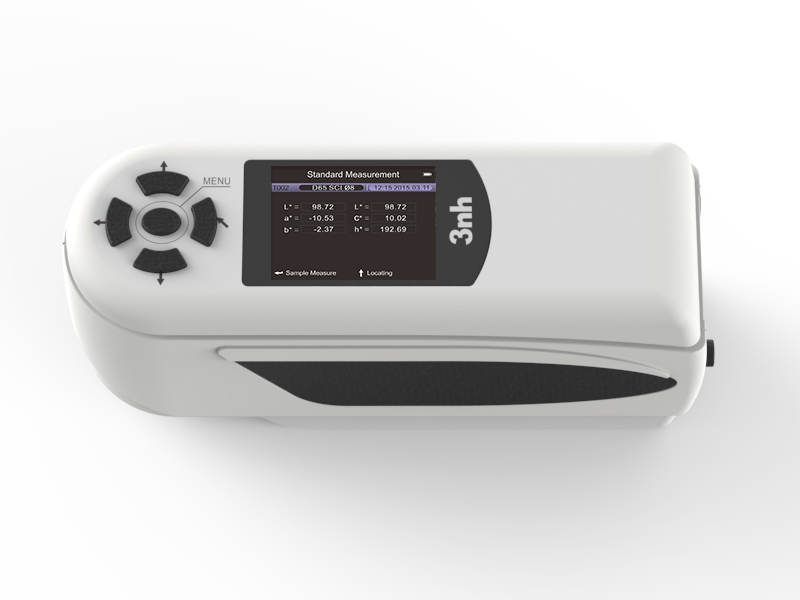

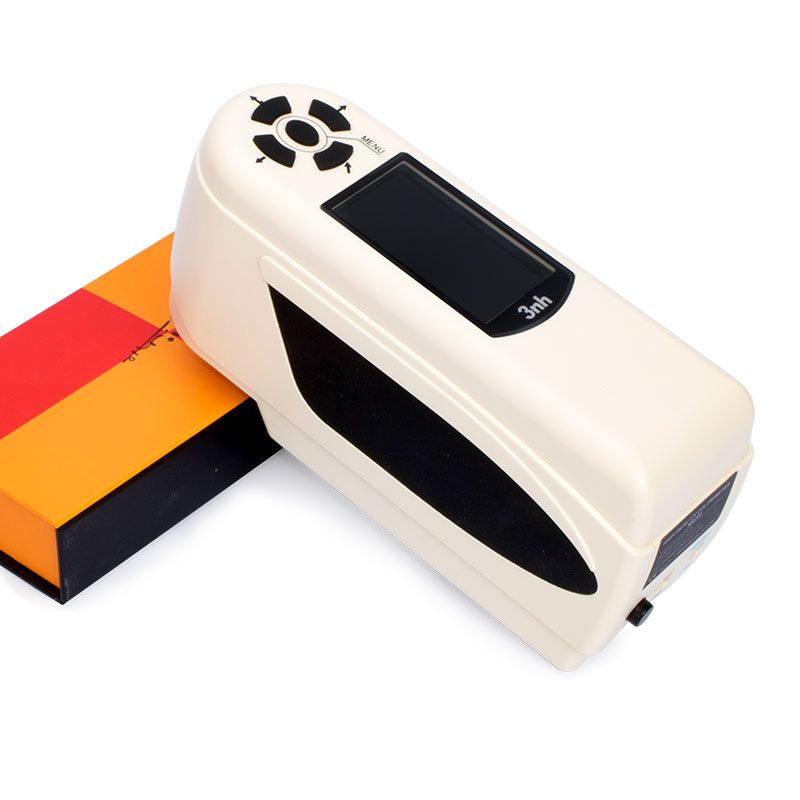

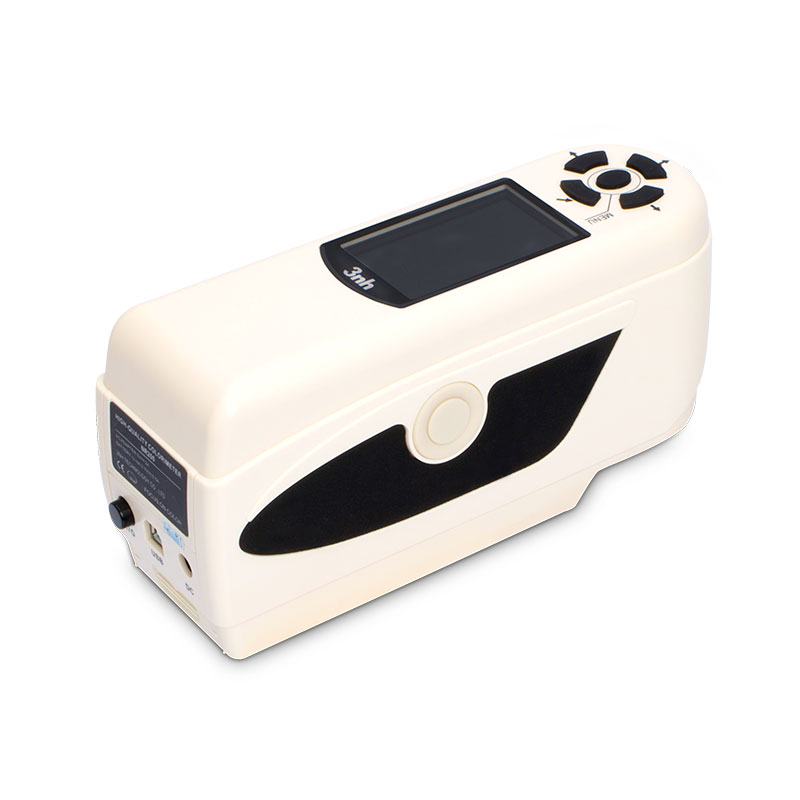

NR 200 High-Quality Colorimeter
High-end brands of domestic colorimeter
The NR200 is a premier colorimeter from 3nh, designed to meet high-end standards in color measurement. This advanced device combines the best features of over ten traditional imported colorimeters, has undergone rigorous testing with tens of thousands of trials, and incorporates multiple innovative technologies. With its accuracy, stability, elegant design, and affordability, the NR200 is a reliable solution for precise color quality control.
1. Leading Humanity Design and Convenient Operation
One-touch access to measurement interface

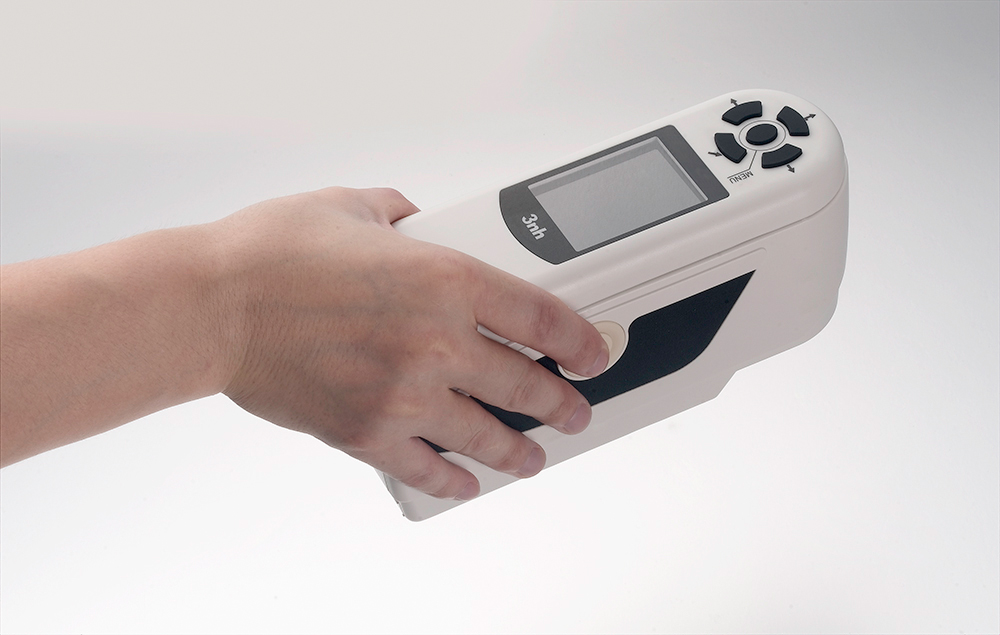

Structure design in line with ergonomics
East-to-use operating interface

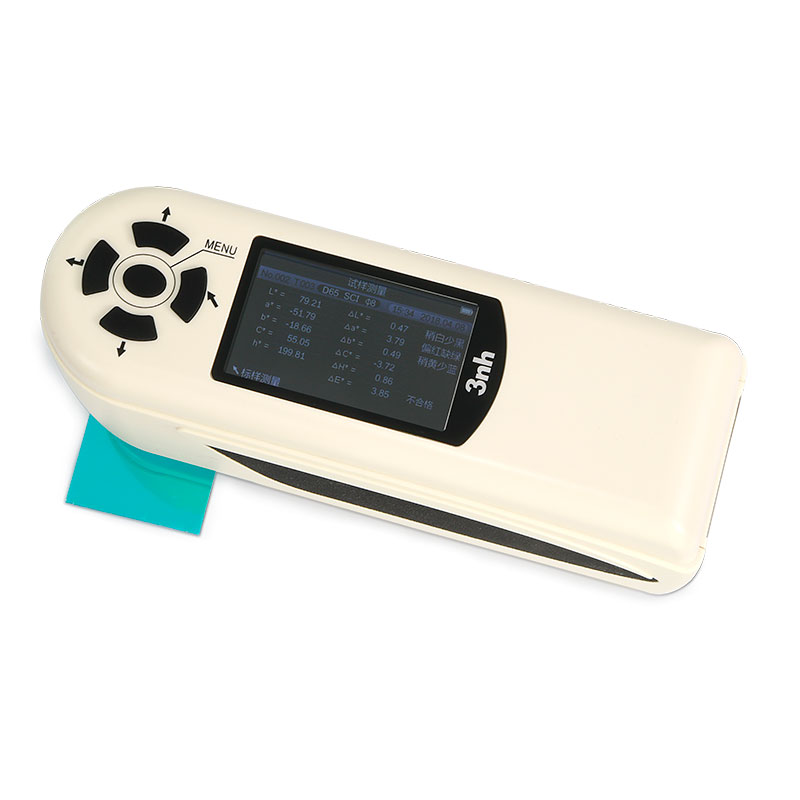

2. Stable Measurement Performance
The repeatability △E is 0.08.
Portable structure design which is more conductive to keeping the instrument stable when using.
3. Convenient and Fast Locating

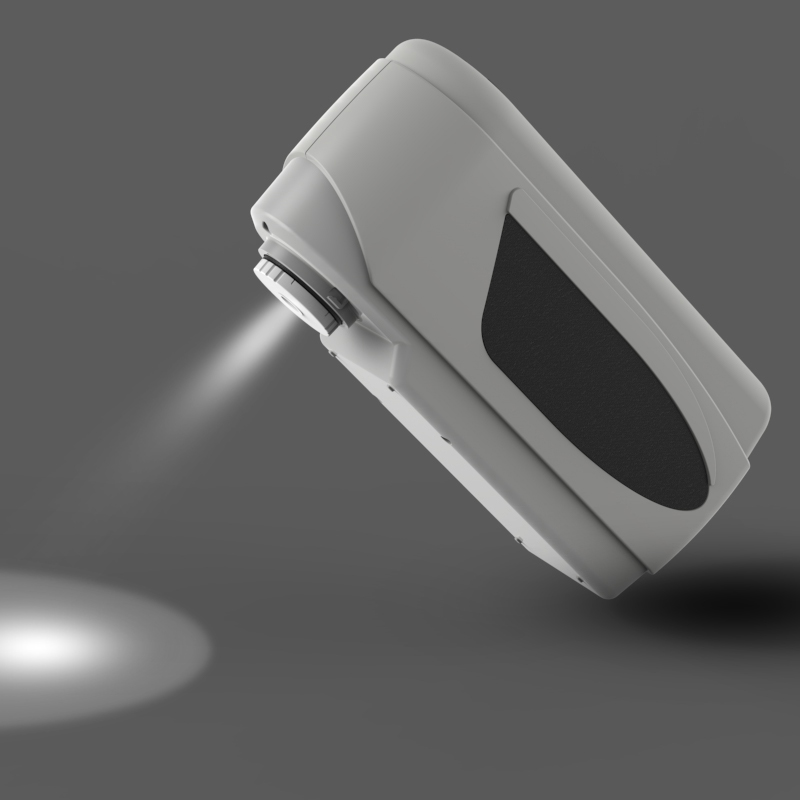

Illumination locating is a fast, simple and convenient locating which created by 3nh.

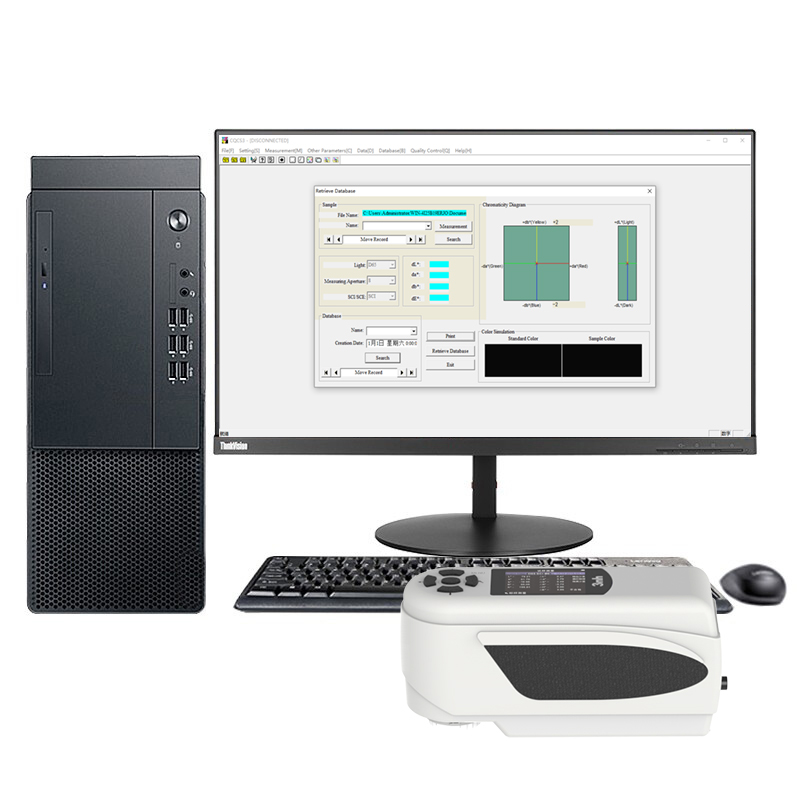

4. PC Software—Realize More Function Expansion
3nh has the intellectual property of PC software. The corresponding software serial number and password protection are configured in 3nh colorimeter.
Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.
5. Advanced Power Management Design
3nh is the first enterprise using high capacity Li-ion battery in colorimeter.
3nh Li-ion battery can be repeatedly charged which will save cost. Meanwhile, it can measure more than 3000 times on one charge to ensure the stability of long time measurement.
NR200 Specifications:
Illuminating/Viewing Geometry |
8/d |
Measuring Aperture |
Φ8mm |
Detector |
Silicon photoelectric diode |
Color Space |
CIEL*a*b*C*h* CIEL*a*b* |
Color Difference Formula |
△E*ab △L*a*b △E*C*h |
Light Source |
D65 |
Light Source Device |
LED blue light excitation |
Errors Between Each Equipment |
≤0.50ΔE*ab |
Storage |
100pcs standards 20000pcs samples |
Repeatability |
Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate |
Weight |
500g |
Dimension |
205×70×100 mm |
Power source |
Rechargeable lithium-ion battery 3.7V@3200mAh |
Lamp Life |
3 years, more than 1 million measurements |
Charging Time |
2 hours (First time 8 hours--100% electricity) |
Measurement Times Before Recharging |
More than 3000 times |
Operating Temperature/Humidity Range |
-10~40℃, relative humidity 0~85% with no condensation |
Data Interface |
USB |
Optional Accessory |
Miniature thermal printer, Powder Test Box |
