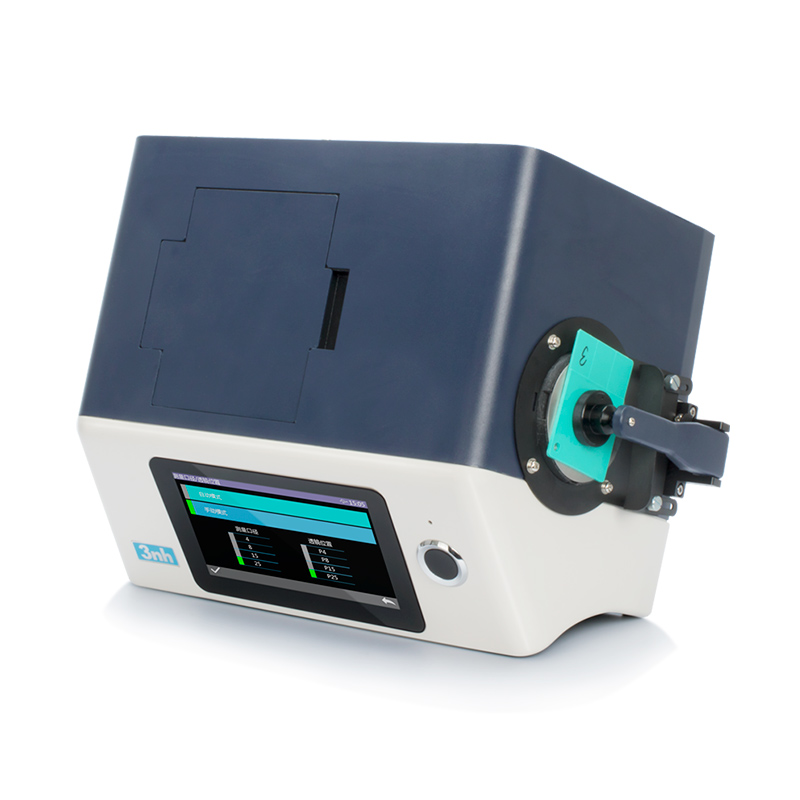

YS6010 Desktop Grating Spectrophotometer
YS6010 Desktop Grating Spectrophotometer
YS6010 Desktop Grating Spectrophotometer
YS6010 Desktop Grating Spectrophotometer

YS6010 Desktop Grating Spectrophotometer

Transmission and Color Measurement

Category: Spectrophotometer

3nh Benchtop Grating Spectrophotometer YS6010:Combines reflection and transmission measurements

The 3nh Benchtop Grating Spectrophotometer YS6010 is a versatile, high-precision instrument designed to handle both reflection and transmission measurements. With its advanced grating-based technology, it provides accurate color analysis across a wide range of materials, making it ideal for industries such as textiles, plastics, printing, and coatings.

d/8d/0ΔE*ab≤0.15ΔE*ab≤0.02ΔE*ab≤0.03
ReflectionTransmissionReflectionTransmission
Optical GeometryInter-instrument ErrorRepeatability

Dual Measurement Capability:Reflection and Transmission

3nh Benchtop Grating Spectrophotometer YS6010 Allows for both reflection measurement and transmission measurement, making it suitable for diverse sample types, including opaque and transparent materials.

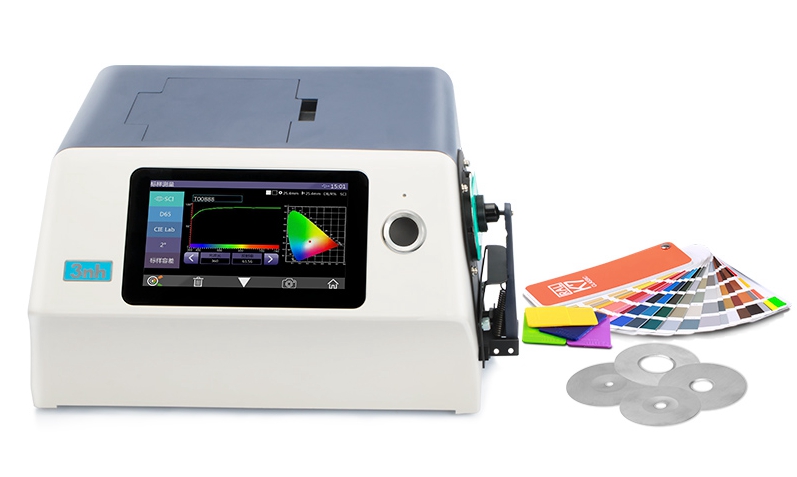

YS6010 Reflective measurement

The Benchtop Grating Spectrophotometer YS6010 has powerful reflective measurement capabilities, a 7-inch TFT capacitive touch screen display, and a full light source configuration. It supports reflective d/8 and transmissive d/0 geometries (including or excluding UV) to meet a variety of application scenarios. Its high-resolution grating system enables color difference detection in industries such as plastics, food, coatings, and printing.

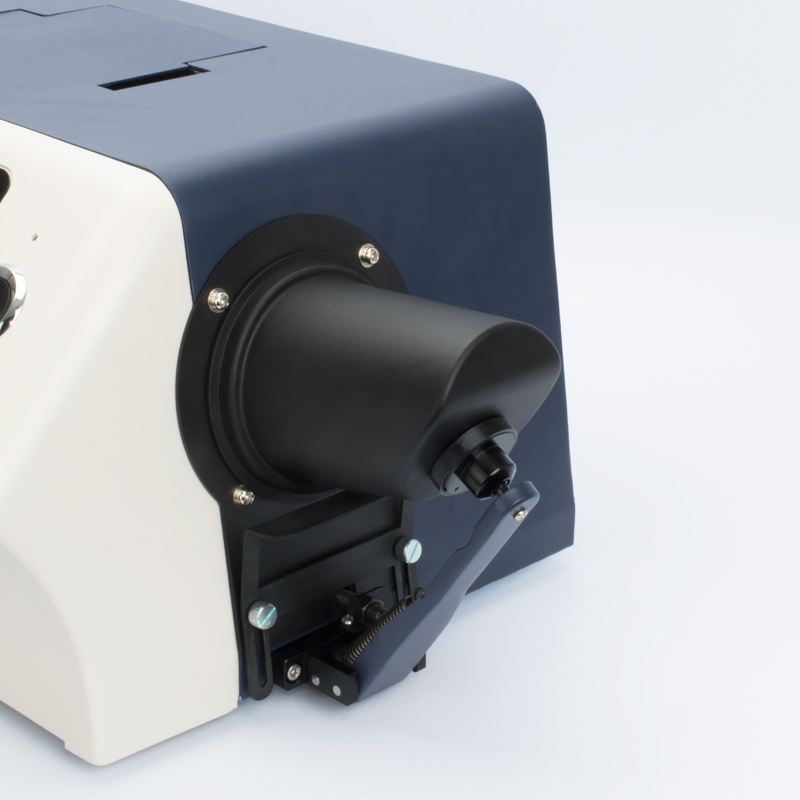

YS6010 Transmission measurement

The Benchtop Grating Spectrophotometer YS6010 not only supports transmission measurement of transparent materials, but also enables haze measurement, such as automotive windshields or plastic films. Its transmission measurement module complies with haze detection standards such as ASTM D1003, ensuring the accuracy and reliability of measurement results, and is suitable for application scenarios with strict requirements on transparency and haze.

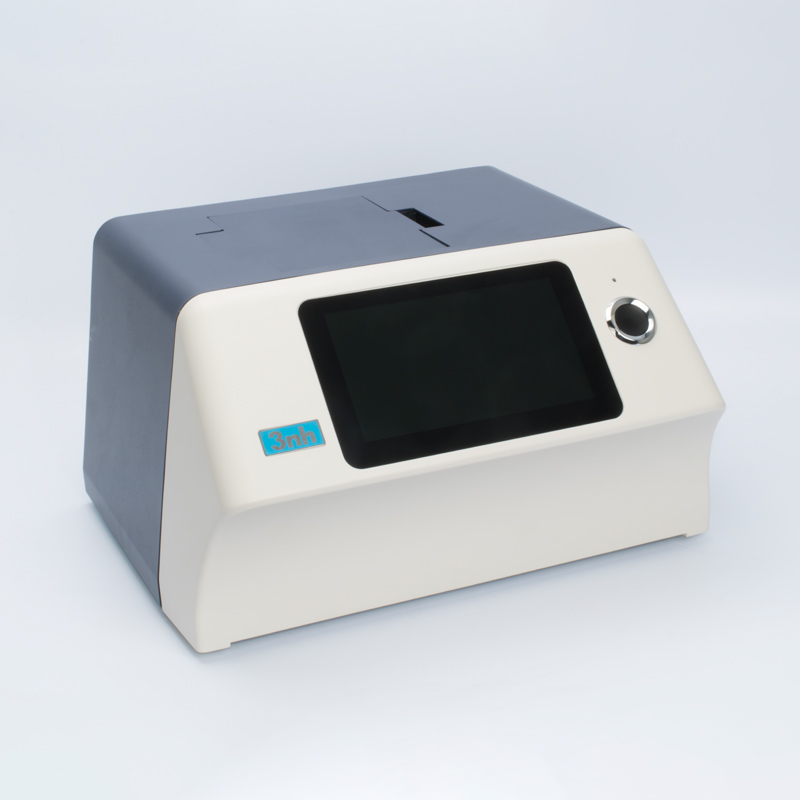

YS6010 Benchtop Grating Spectrophotometer

Features

This device features high-end hardware, including a 7-inch TFT color capacitive touchscreen display and a concave grating design. It is equipped with a dual 256-pixel array CMOS sensor and stable, long-life LED and UV LED light sources, offering reflective and transmissive spectrum measurements for precise Lab values, ideal for color formulation and accurate color transfer.

The device automatically identifies the measurement aperture and allows easy switching between four aperture sizes: φ25.4mm, 15mm, 8mm, and 4mm, with the option to customize apertures as needed. A built-in temperature sensor monitors and compensates for measurement temperature, ensuring enhanced measurement accuracy.

With a wavelength range of 360nm to 780nm and built-in 400nm or 460nm cut-off (only available in the xenon lamp edition), this device excels in professional UV measurement. An independent light source detector continuously monitors the light source condition for reliability. It supports multiple measurement modes, such as Quality Management Mode and Sample Mode, to meet diverse user needs.

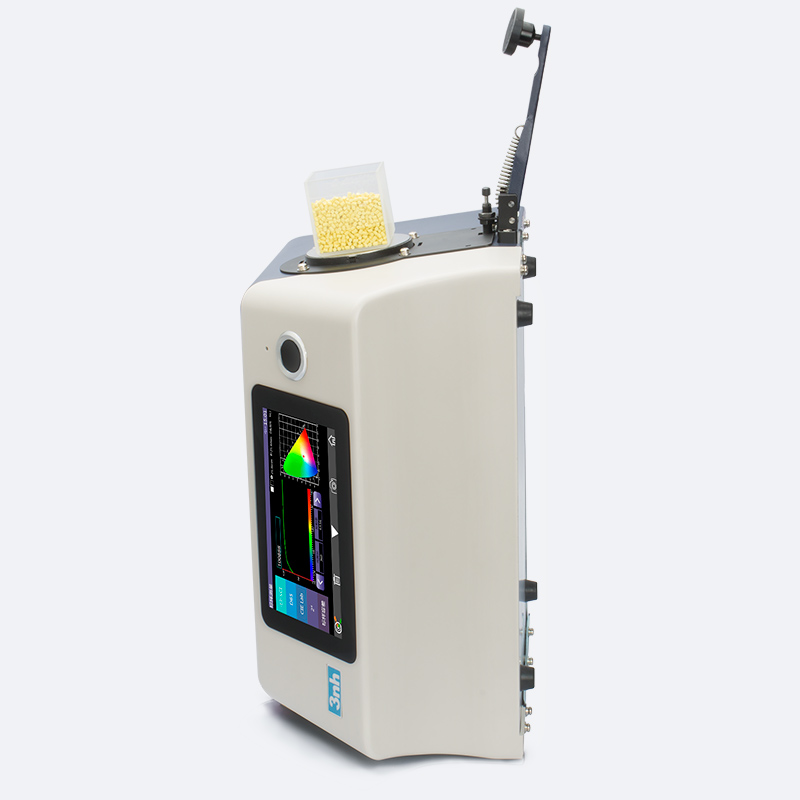

Additional optional accessories include a reflection sample holder, transmission fixture, micro 4mm aperture transmission test component, and instrument inversion test component, expanding its applicability across various working conditions. The device offers a large data storage capacity for up to 20,000 test results and features built-in camera positioning, with more powerful extended functions available through PC software.


Application Industry

The YS6010 benchtop spectrophotometer is designed for precise color analysis and transmission in laboratory settings. Its versatility allows it to be used across various industries, including plastics, electronics, paints and inks, printing, textiles, leather, paper, automotive, medical, cosmetics, food, research institutions, and laboratories.


Technical Specification

Model YS6010 Benchtop Spectrophotometer
Optical Geometry Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) ;

SCI (specular component included)/SCE (specular component excluded) ;

Include UV / excluded UV light source

Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing) ;

SCI (specular component included)/SCE (specular component excluded) ;

Include UV / excluded UV light source;

Haze(ASTM D1003),
Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
Application

It is used for accurate analysis and transmission of laboratory color.

Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.

Integrating Sphere Size Φ154mm
Light Source 360 nm to 780 nm, Combined LED Light, 400nm cut-off light source
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 360-780nm
Wavelength Interval 10nm
Semiband Width 5nm
Measured Reflectance Range 0-200%
Measuring Aperture Reflective : Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive : Φ30mm/Φ25mm;
Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position
Specular Component Reflectance: SCI&SCE / Transmittance: SCI&SCE
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formula ΔE * ab ,ΔE * uv ,ΔE * 94 ,ΔE * cmc(2:1) ,ΔE * cmc(1:1) ,ΔE * 00 , DINΔE 99 ,ΔE (Hunter),
Other Colorimetric Index WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
MI (Metamerism Index),APHA/Hazen/Pt-Co
Staining Fastness, Color Fastness, Color Strength, Opacity,
8° Glossiness,Gardner Index, Saybolt , 555 Index, Haze(ASTM D1003)
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75, F1,F2,F3,F4,F5,F6, F7,F8,F9,F10,F11,F12, CWF,DLF,TL83,TL84,TPL5,U30
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time About 2.4s (Measure SCI & SCE about 5s)
Repeatability Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%)

Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%)

Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Φ25.4mm/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles)
Dimension L*W*H=370x300x200mm
Weight Approx. 9.6kg
Power AC 24V, 3A Power adapter power supply
Illuminant Life Span 5 years, more than 3 million times measurements
Display 7-inch TFT color LCD, Capacitive Touch Screen
Data Port USB & Print serial port
Data Storage Standard 2000 Pcs, Sample 20000 Pcs
Language Simplified Chinese, Traditional Chinese, English,
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 8 caliber, 4 caliber
Optional Accessory Micro-printer, Transmissive Test Component, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components, culture dish
Notes The specifications are subject to change without notice.
