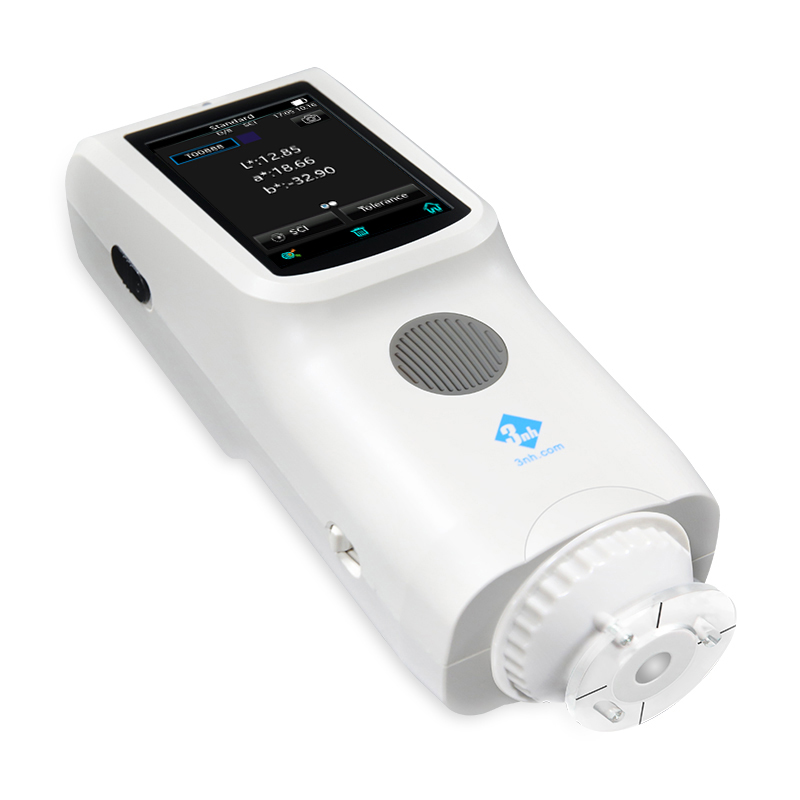

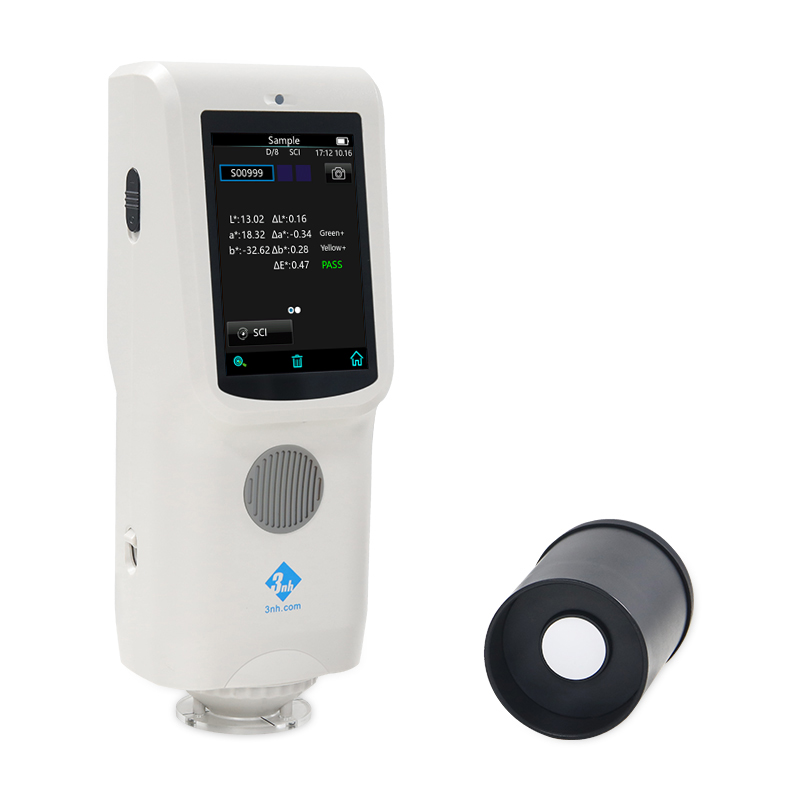

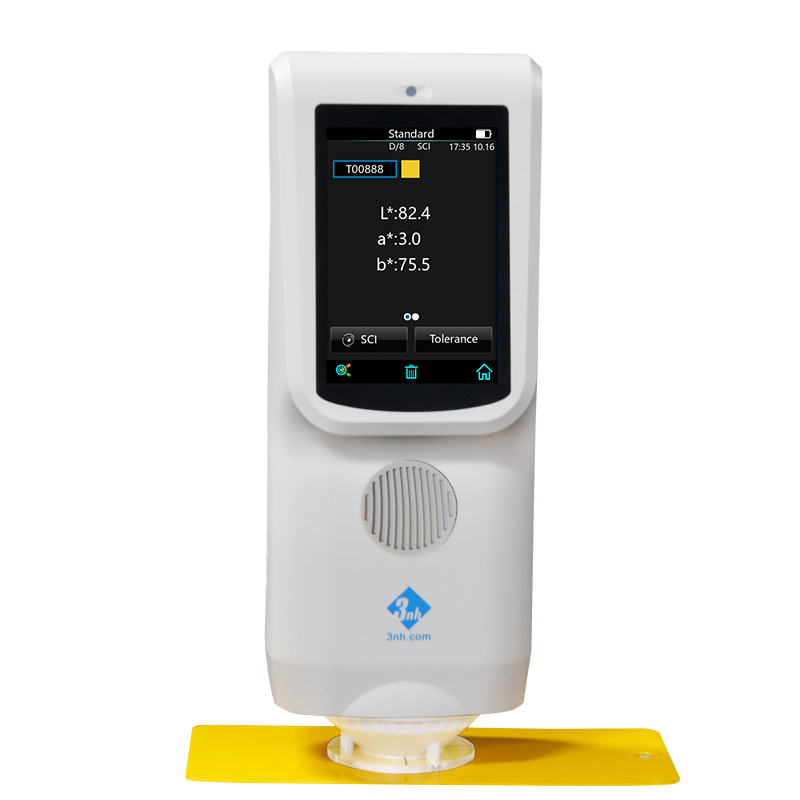

TS7036 Portable Spectrocolorimeter

TS7036 is a new portable spectrocolorimeter with 3nh own core research and development technology. It is the high level colorimeter in spectral architecture. In addition to ensure accurate relative ΔE at the same time, it is also to ensure the accuracy of the absolute value of L, A and B for a long time. And it can pass the international standards and national standards of calibration any time any where. Using built-in silicon photodiode array (double row group 32) sensors, imported whiteboard, repeatability ΔE * ab is easily controlled within 0.05. The measurement speed and convenience of the operation makes it easy to use. TS7036 spectrocolorimeter can all quickly judge color difference measurement when connecting to PC software or not. With powerful functions and 4/8 mm double apertures, it meets the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc.

Application

With 8mm and 4mm dual apertures, TS7036 spectroclorimeter is widely suitable for the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc.

Technical Advantages

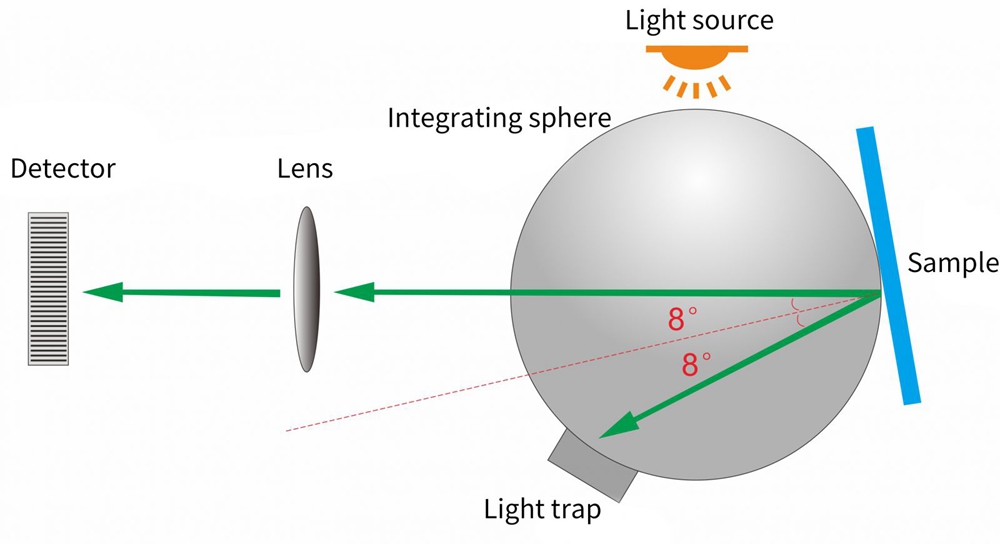

1.Adopt international common use d/8 SCI/SCE Synthesis technology

TS7036 spectrocolorimeter adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded) Synthesis technology. It is suitable for color management and quality control in various industries such as color matching and coating, textile, plastic, food, building materials, cosmetics, etc.

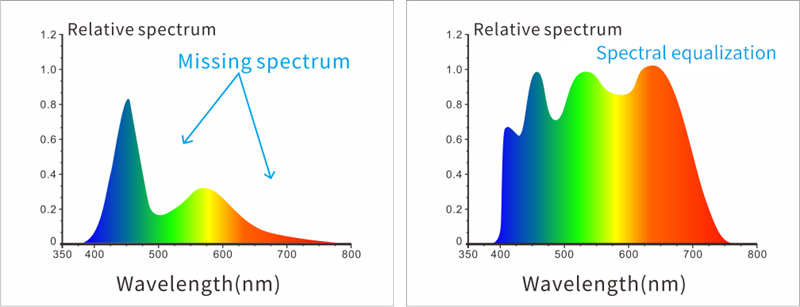

2.  Adopt full waveband balanced LED light source

The full waveband balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of white LED in specific waveband, and ensures the measurement speed and accuracy of the measurement results.

3. Silicon photodiode array sensor (32 groups with double rows)

The dual-32 array sensor with larger area has strong light but not saturate, higher sensitivity of low light and wider spectral response range, which ensures the measurement speed, accuracy, stability and consistency of the instrument.

4. A variety of color space, a variety of observation light sources

TS7036 spectrocolorimeter provides CIE LAB color, XYZ, Yxy, LCh, CIE LUV, s - RGB, beta xy, DIN Lab99 Munsell color space (C / 2), and D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4 and F5, F6 and F7 (DLF), F8, F9, F10 (TPL5) and F11 (TL84), F12 (TL83 / U30) a variety of light source, to meet the demand of special measurement under different measurement conditions.

5. Ergonomic design and easy measuring device

TS7036 spectrocolorimeter has a beautiful, smooth shape and comfortable grip, in line with the structure design of human mechanics, fit the palm for continuous testing, so that you can use it quickly and easily. An automatic measuring device is added, which is portable, quick and easy to measure.

6. Calirbation Certificate

Each TS7036 spectrocolorimeter has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metrotechnical Institute to ensure the authority of the instrument test data.

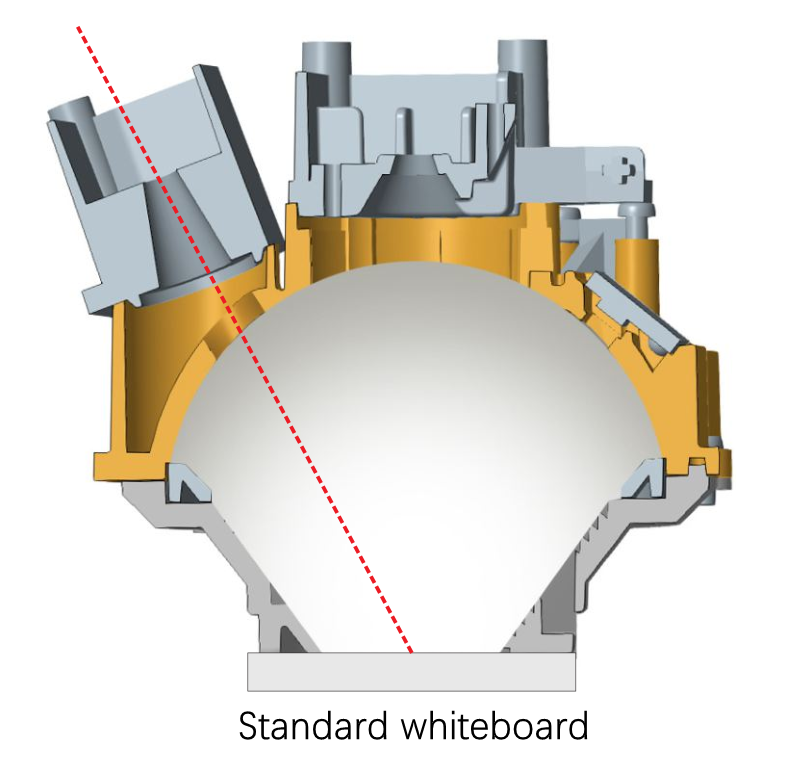

7. ETC real-time calibration technology

TS7036 spectrophotometer adopts imported standard white board, which is resistant to yelloping and dirt infiltration and can be wiped, ensuring the long-term accuracy of the instrument. An innovative ETC real-time Calibration technique is also used, with a built-in standard white board into the optical system, which is reliably accurate and repeatable for each Test.

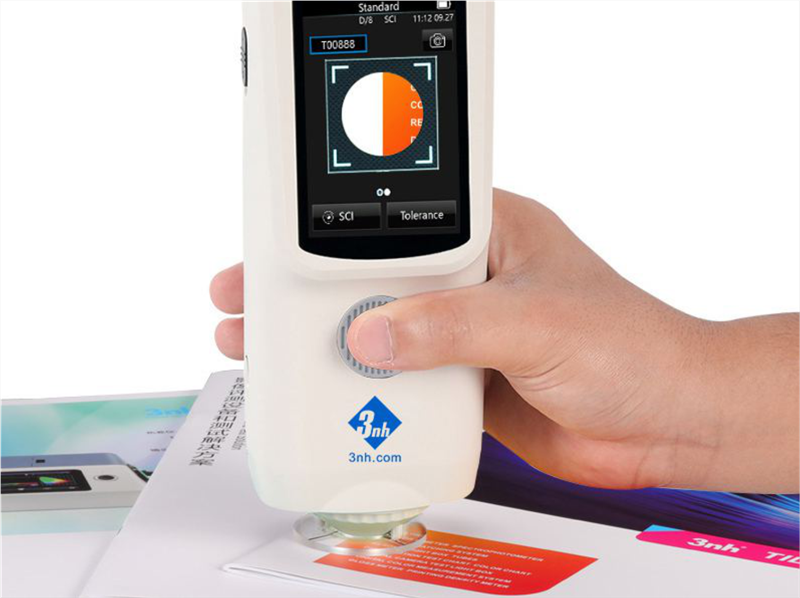

8. Camera locating can clearly observe the measured area

TS7036 spectrocolorimeter has a built-in camera for positioning, which can accurately determine whether the measured part of the object is the center of the target through real-time viewing by the camera, thus improving the measurement efficiency and accuracy.

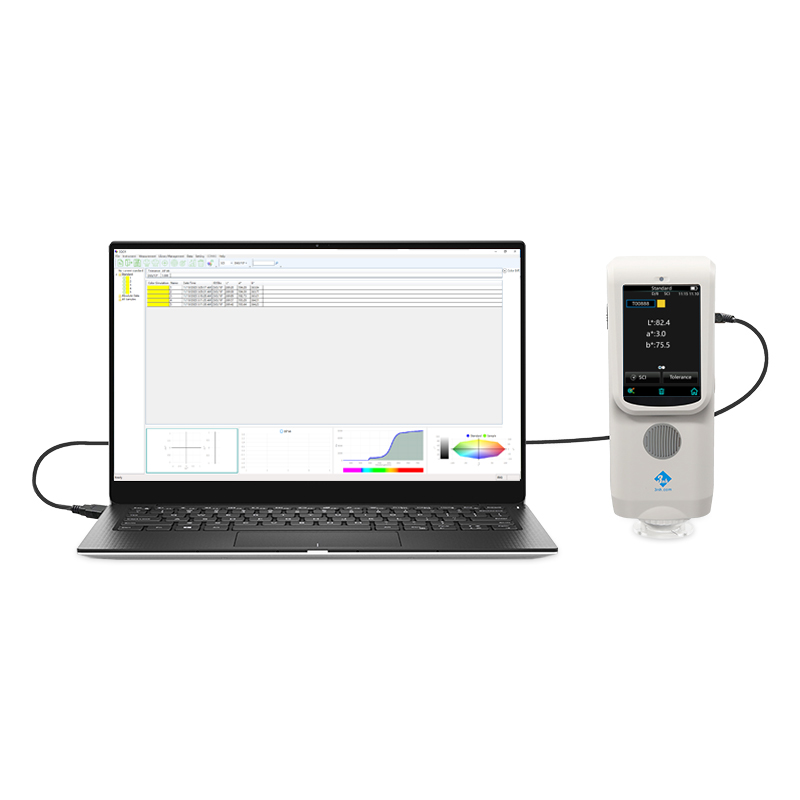

9. Color management software

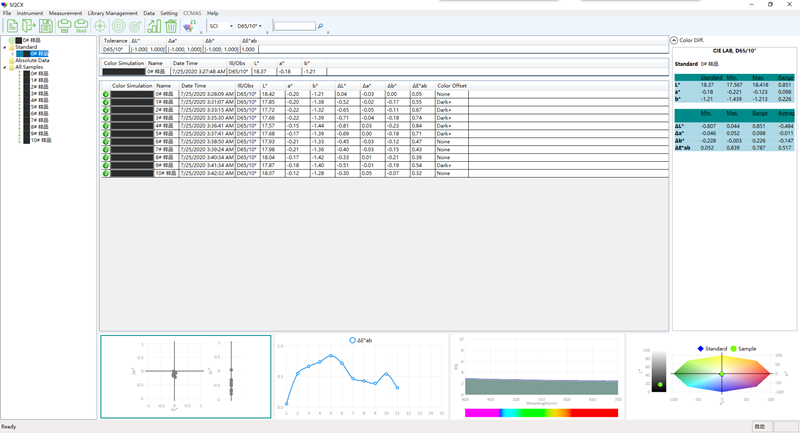

SQCX quality management software with TS7036 spectrocolorimeter is suitable for quality monitoring and color data management in various industries. Data the user's color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize the customer's color management.

Technical Specification
