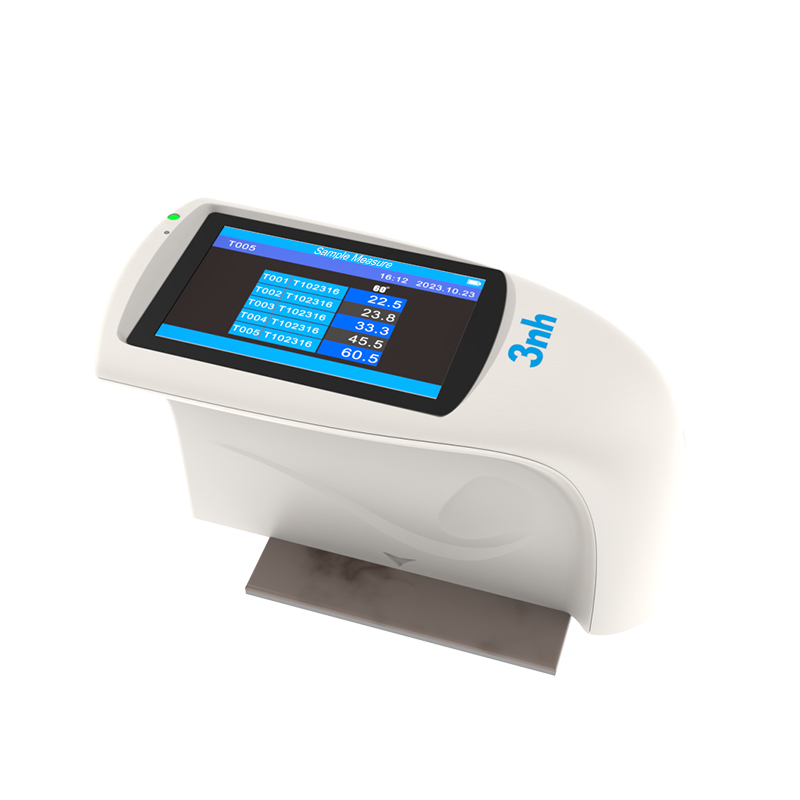

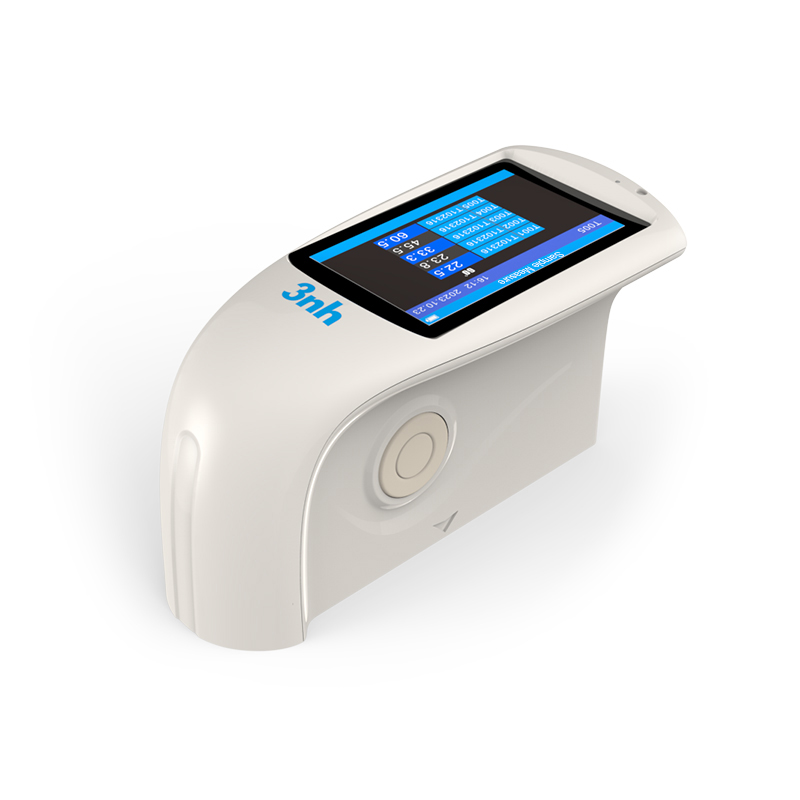

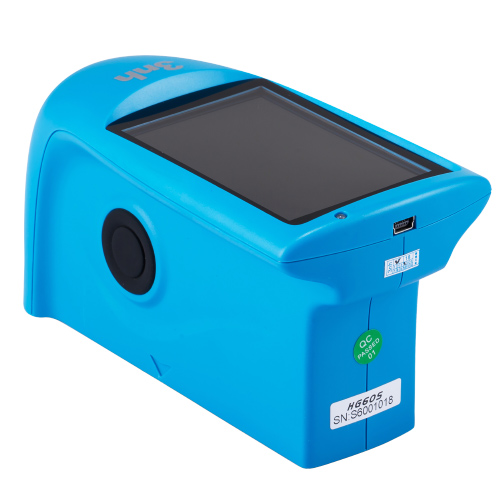

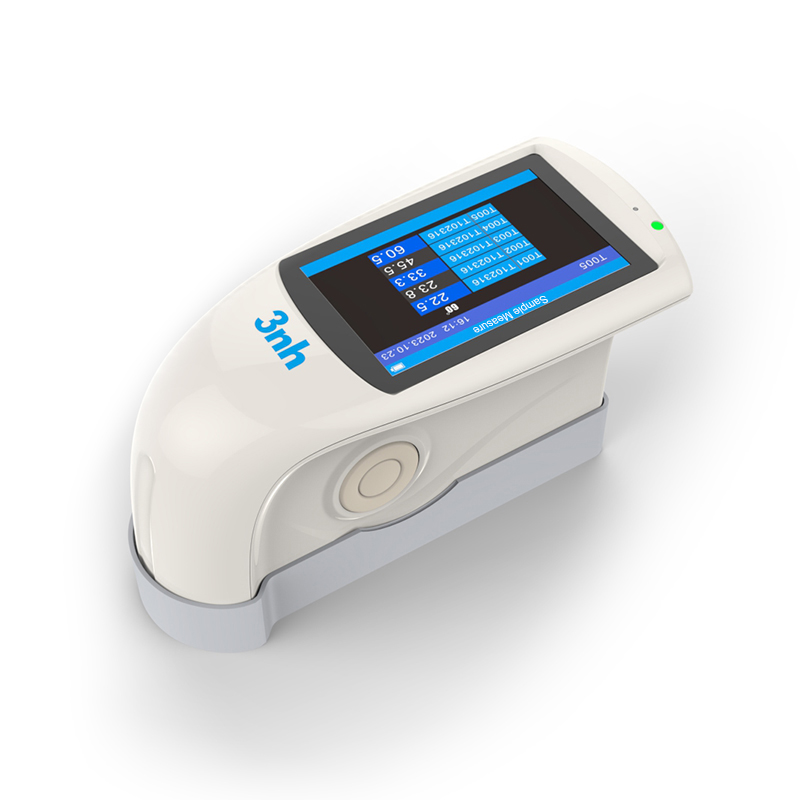

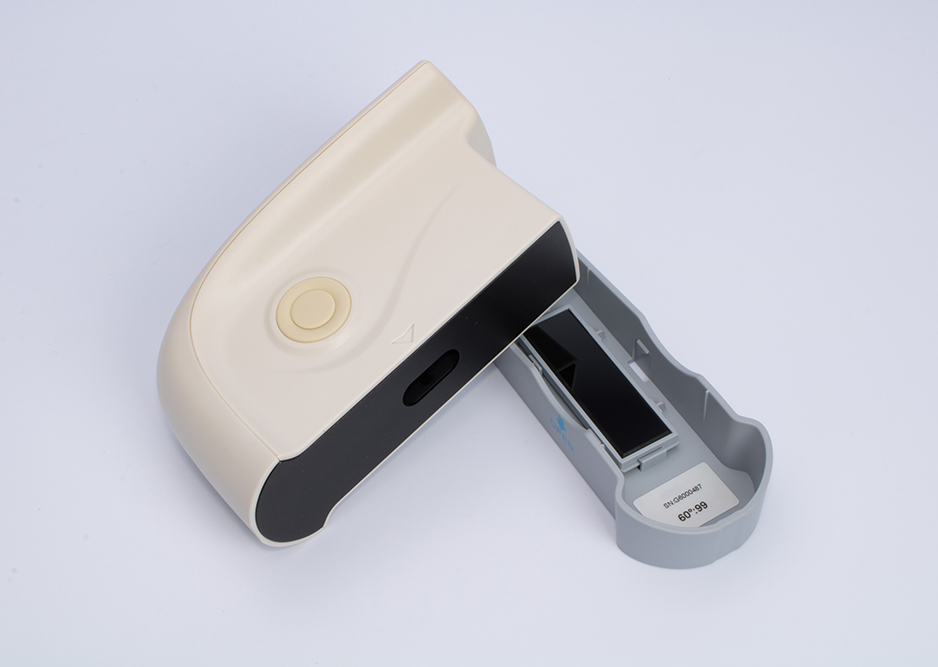

HG60S Economic Gloss Meter
Details
HG60S gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457.
HG60S gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products, marble, granite, vitrified polished tile, pottery brick and porcelain, plastic, paper, hardware industries, etc.
Features:
60° angle for semi gloss
2. Concise appearance, feel good

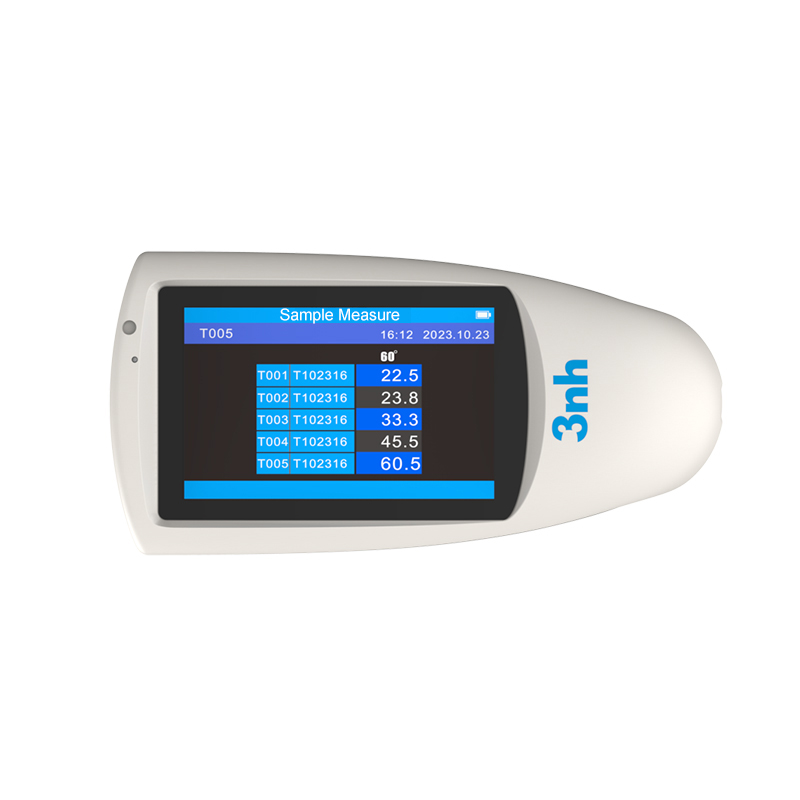

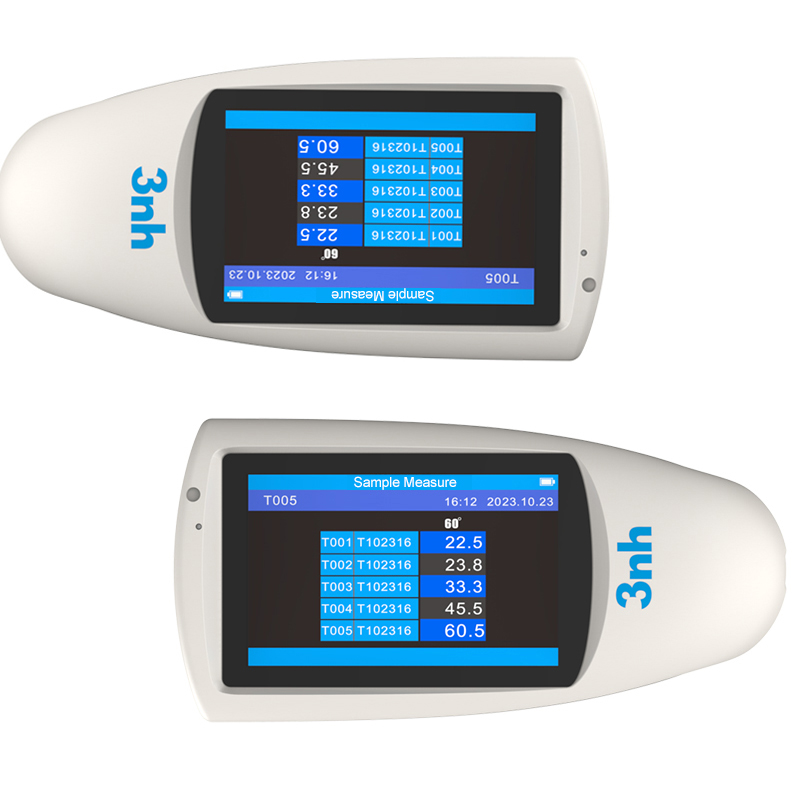

3. Display 3 sets of measurement data, good for comparison
4. Built-in lithium ion rechargeable battery
5. Basic model measurement can meet basic glossiness testing requirements

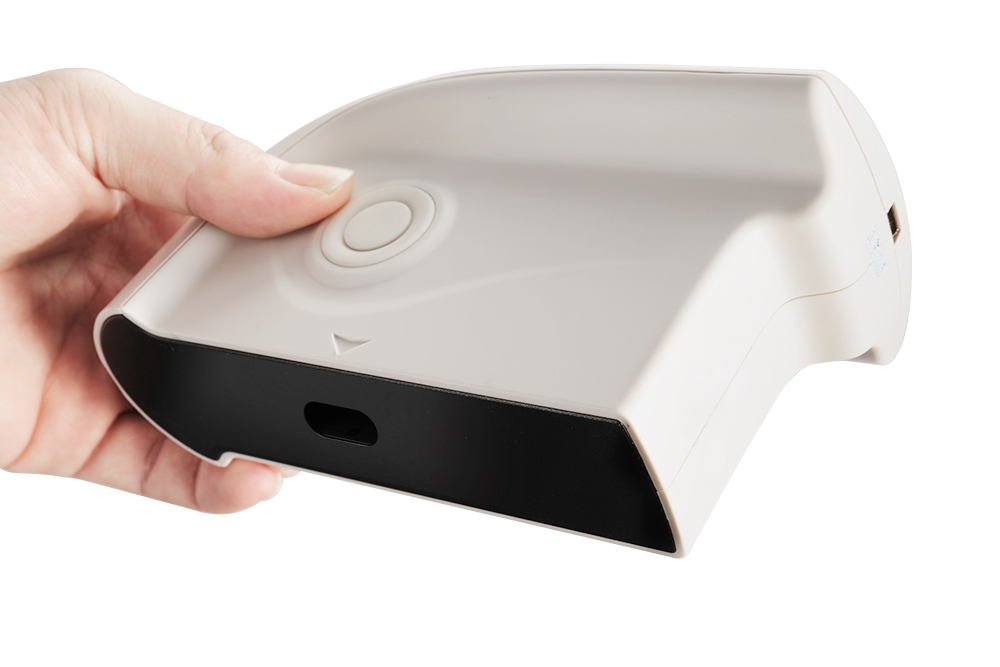

6. One button for all angles measurement at the same location
7. Comply with international standards
8. Stable performance, easy to read data.
Specifications:
| HG60S Economic Gloss Meter | |
| Model: | HG60S |
| Measuring Angle |
60° Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area (mm) | 9x15 |
| Measuring Range | 0~200GU |
| Division Value | 1GU |
|
Measurement Range Repeatability Reproducibility | 0-200GU ±1GU ± 1GU |
| Measurement Standard | Confirm with JJG696 second class glossmeter working requirement |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Errors | ±1.5 , ± 1.5% |
| Measuring Time | 0.5s |
| Dimension | L*W*H : 160mm*75mm*90mm |
| Weight | 350g |
| Language | Chinese/English |
| Battery | 3200mAh Li-ion Battery, >10000 times(within 8 hours) |
| Display | TFT 3.5 inch |
| Interface | USB/RS-232 |
| Storage | Basic mode: 1000 |
| Software | / |
| Operation Temperature | 0~40℃（32~104°F） |
| Storage Temperature | -20~50℃（-4~122°F） |
| Humidity | <85% relative humidity, no condensation |

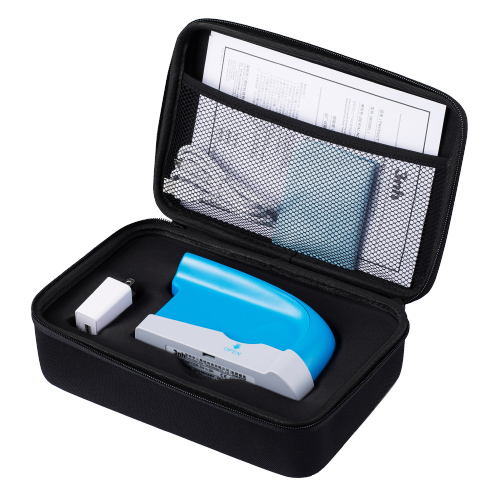

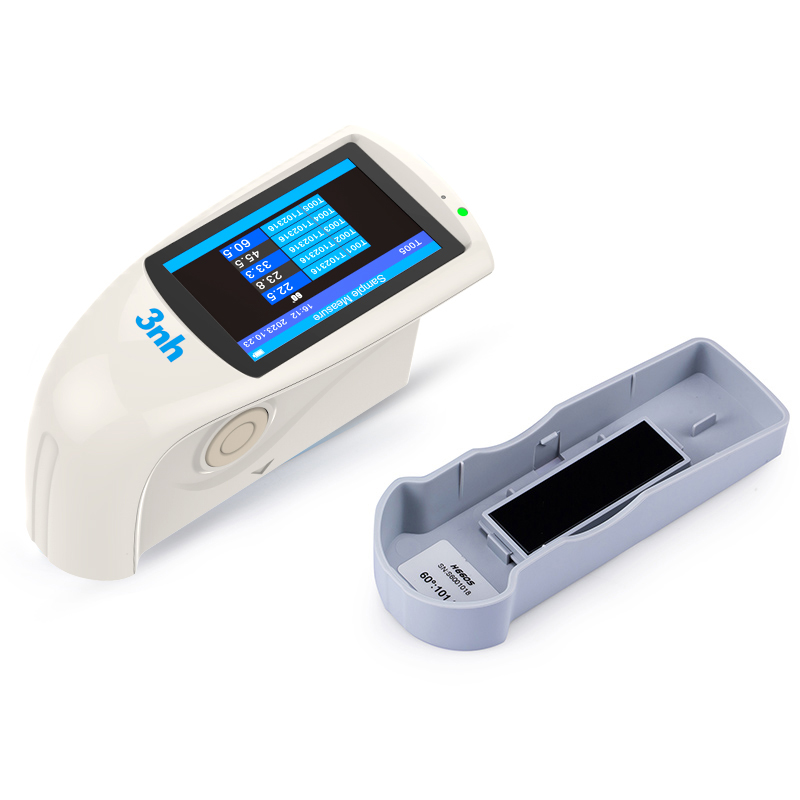

| Standard Accessories | Power Adapter, USB cable, User Manual, Calibration Plate |
| Optional Accessories | Miniature Printer |
| Note | The specifications are subject to change without notice. |
